Type: 12V rechargeable battery (6 cells per unit)
Capacity: 9Ah @ 20-hour rate to 1.75V per cell @ 25°C
Weight: Approx. 2.5 kg
Maximum Discharge Current: 90A (for 5 seconds)
Internal Resistance: Approx. 18 mΩ
Operating Temperature Range:
Discharge: -20°C to 60°C
Charge: 0°C to 50°C
Storage: -20°C to 60°C
Normal Operating Temperature: 25°C ± 5°C
Charging Specifications:
Float Charging Voltage: 13.7 – 13.9 VDC (at 25°C)
Cycle/Equalization Voltage: 14.6 – 14.8 VDC (at 25°C)
Recommended Maximum Charging Current: 2.7A
Self-Discharge:
Less than 3% per month at 25°C
Can be stored up to 6 months at 25°C before recharge
Terminal Type: F1/F2
Container Material: ABS (UL94-HB), optional UL94-V1 flame-retardant material available
Suitable for UPS systems, emergency lighting, security systems, telecom equipment, and other standby or cyclic applications.

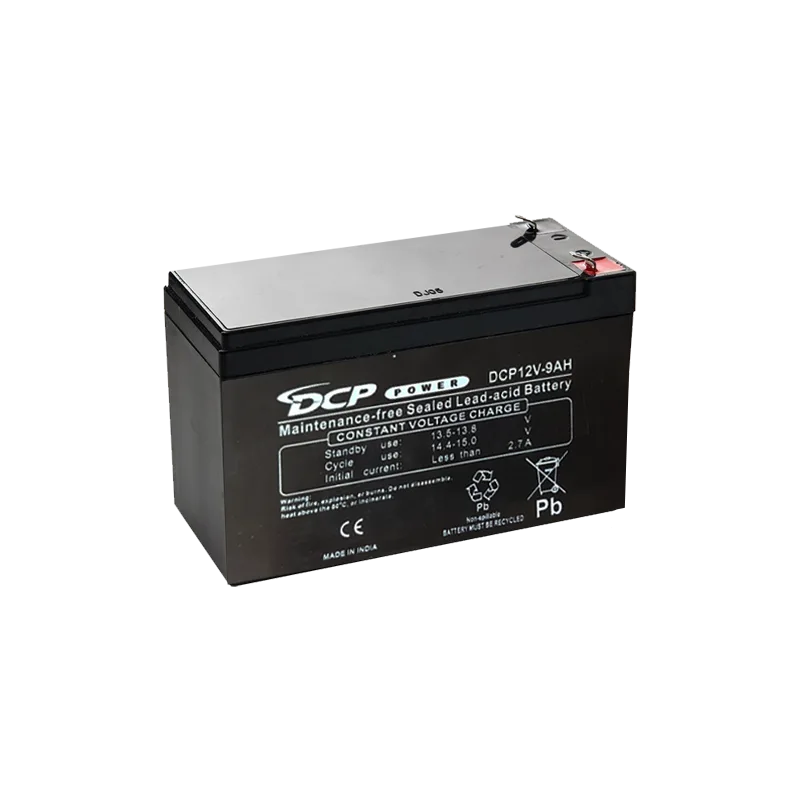

DCP 12V/9Ah
Type: 12V rechargeable battery (6 cells per unit)
Capacity: 9Ah @ 20-hour rate to 1.75V per cell @ 25°C
Weight: Approx. 2.5 kg
Maximum Discharge Current: 90A (for 5 seconds)
Internal Resistance: Approx. 18 mΩ
Operating Temperature Range:
Discharge: -20°C to 60°C
Charge: 0°C to 50°C
Storage: -20°C to 60°C
Normal Operating Temperature: 25°C ± 5°C
Charging Specifications:
Float Charging Voltage: 13.7 – 13.9 VDC (at 25°C)
Cycle/Equalization Voltage: 14.6 – 14.8 VDC (at 25°C)
Recommended Maximum Charging Current: 2.7A
Self-Discharge:
Less than 3% per month at 25°C
Can be stored up to 6 months at 25°C before recharge
Terminal Type: F1/F2
Container Material: ABS (UL94-HB), optional UL94-V1 flame-retardant material available
Suitable for UPS systems, emergency lighting, security systems, telecom equipment, and other standby or cyclic applications.
